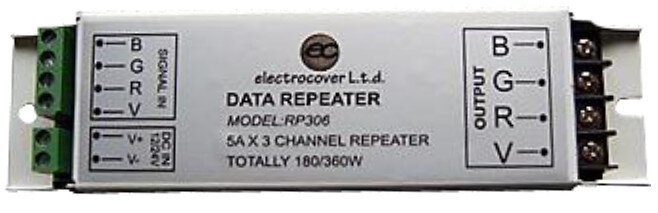

Data repeater for led strips

Data repeater for led strips.

Item code: 23.306DR

Input voltage: 12V DC & 24V DC.

Power: 180W at 12V DC & 360W at 24V DC.

Application: Use for connecting more than 10 feet SMD Led strip.

Features:

Data repeater system for led strips. 3 control channels (RGB) (Red-green-blue), maximum intensity at 5A per channel.Works with almost all products of LED.We use it if we want to connect up to 10 meters of led strip together.

Input Voltage: 12-24 V DC
Channels: 3 (R, G, B)
Output power: 5A (per channel) 15A total on 12V DC 180W and 24V DC 360W.
Dimensions: Length = 165mm Width = 39mm Height = 26mm.
Weight: 260gr.

Connection:

Note:
You can connect and monochrome LED strips, connecting the positive pole on the “V” and the negative on one of the  the RGB output lines.
