Flush-mounted Installation socket boxes

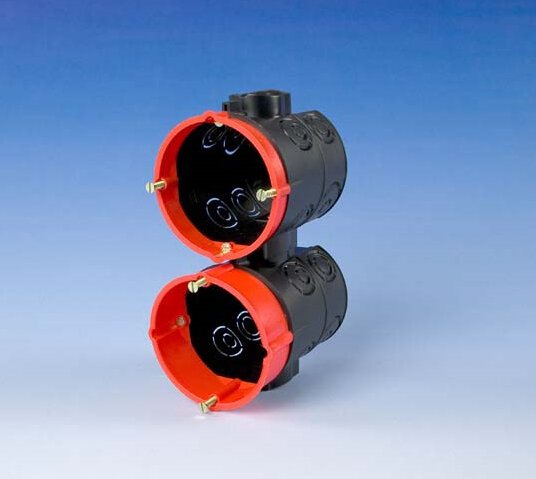

Flush-mounted socket boxes Ø 60 mm

with 25 mm Pipeconnection

The new generation of connector sockets is equipped with pipe entries of 20 and 25 mm. The pipe snaps into the fringe automatically and doesn`t protrude into the socket´s interior – the connection area is completly available for installation devices.

Four screw bosses as standard are a further benefit for assembly, allowing both, vertical and horizontal mounting. This meets convenience and saftey requirements since the danger of damaging wires is reduced, preventing a potential dissemination to the support frame.

• 20 an 25 mm Pipe entry
• Pipes doesn´t protrude to the sockets interior
• 4 screw bosses
• Material: Polystyrene

                             Link to related boxes

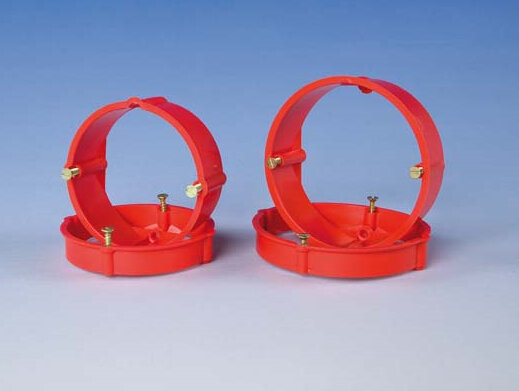

                      Adjustment rings

• With pre-assembled 15 mm screws

• Plaster adjustment rings of the same diameter can be fitted

           on top of each other
